Professional Mold Testing & Injection moulding Testing


  • Professional Mold testing and Plastic Molding capability : we have 50~250T injection molding machines in house, 300~3000T machines in associated party.
  • We test the mold and product wide range of plastic products.
  • When we make new mold project, we will do the professional mold testing service and send out the testing samples to customer's address by courier express service.
  • When we receive the modification job project, after the job is done, we also make the professional mold testing and send out the testing samples to customer's address by courier express service.

Professional Mold Testing & Injection moulding Testing


  • Professional Mold testing and Plastic Molding capability : we have 50~250T injection molding machines in house, 300~3000T machines in associated party.
  • We test the mold and product wide range of plastic products.
  • When we make new mold project, we will do the professional mold testing service and send out the testing samples to customer's address by courier express service.
  • When we receive the modification job project, after the job is done, we also make the professional mold testing and send out the testing samples to customer's address by courier express service.

Professional Mold Testing Service



Intertech is a leading maker for Mold testing, professional mold testing, mold testing companies and mold test manufacturers,  plastic moulding manufacturing in Taiwan. Intertech's services include prototyping, tooling, lab testing, sampling, pilot run, mass production and assembly.

Intertech Machinery is good at manufacturing plastic mold components used in industrial and packaging applications. Per customer’s demand, we will discuss the raw material required, the color master batch requires, mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customers. After that, parts design service, mold engineering service, mass production arrangement, post assembly service or post machining service are also provided.

Each mold and molding projects case, we will see client specifications to serve the needs of a wide variety of industries. Our injection mold technology have D&B D-U-N-S compliant working system and meets high industry standards. We can mold anyplastic, metal and rubber projects for customers. We have advanced machinery equipment to provide small to larger mold projects and also manufacture thermoplastic, engineering plastics, silicone rubber and metal parts.


We check mold shrinkage testing point for producing high tolerance parts.
Other physical testing services include war page, material flowness, material
Mark, knitting line checking, color testing etc.

Besides professional mold testing, Intertech has many different injection moulding services. Additional services include applied research, product and part design, parts development, structural design, material compatibility analysis, material selection and development, processing services, prototyping, failure analysis, are all available for assisting our customers need.

We manage various materials include PMMA, PC, Acrylic, POM, polypropylene, HDPE, PVC, PET and ABS. Capabilities include design verification, tooling, trimming and machining.



Assembly and automation

  • Automated assembly
  • Semi-automated assembly
  • Manual assembly
  • Printing and packaging


The Highlight Point of Professional Mold Testing Service


  • Our professional service includes engineering, mold making, prototyping and tooling
  • From single prototype to OEM and ODM high professional volume production, We can manage all our clients plastic injection molding requirements.
  • Except making mold, we also provide injection molding service, compression molding service (especial for silicone rubber material compounding with various colors matching and production job for specific product need) or punch die production service.

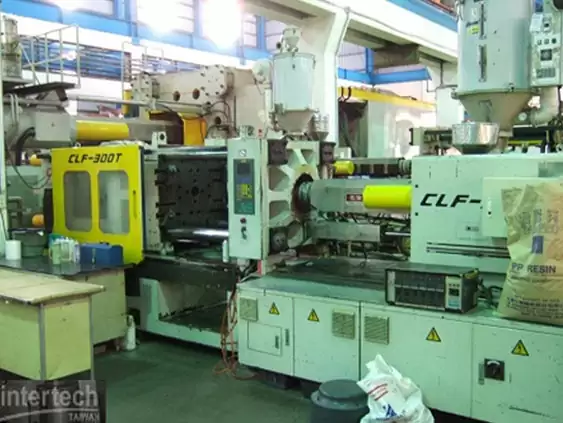

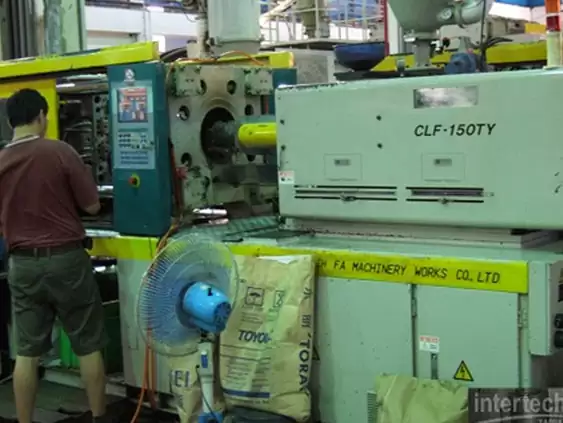

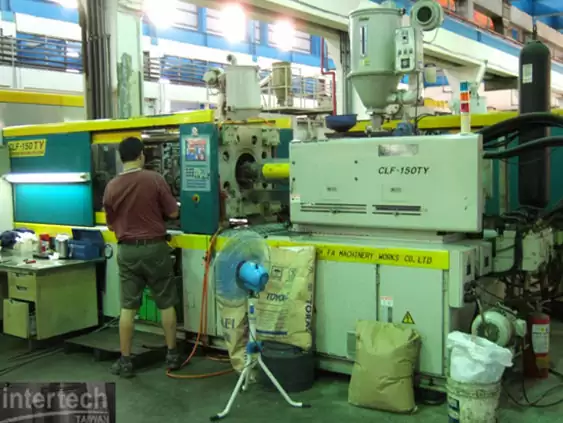

  • our professional injection mold testing machine available 50~250T in house, 300~3000T in associated party.
  • per each project need, we also design and provide fixture and jig making service for stabilizing some easy deformed parts need.
  • per customer’s need, we also provide chrome plated, painting, ultra-sonic welding, assembly or packing/printing service.

We provide low volume, pilot run of production job and mass production for customer.

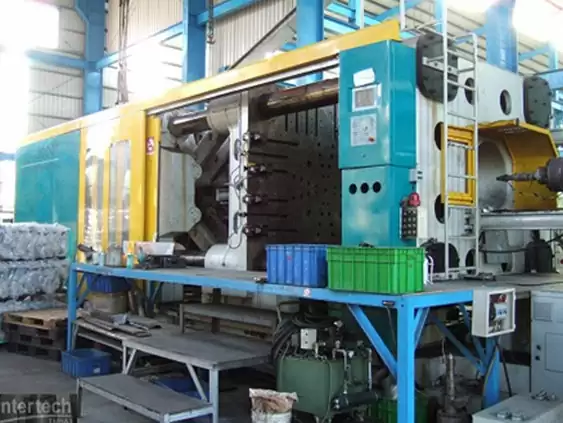

professional mold testing factory-1

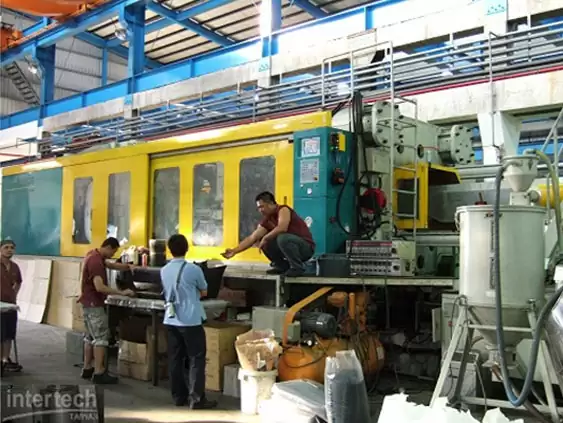

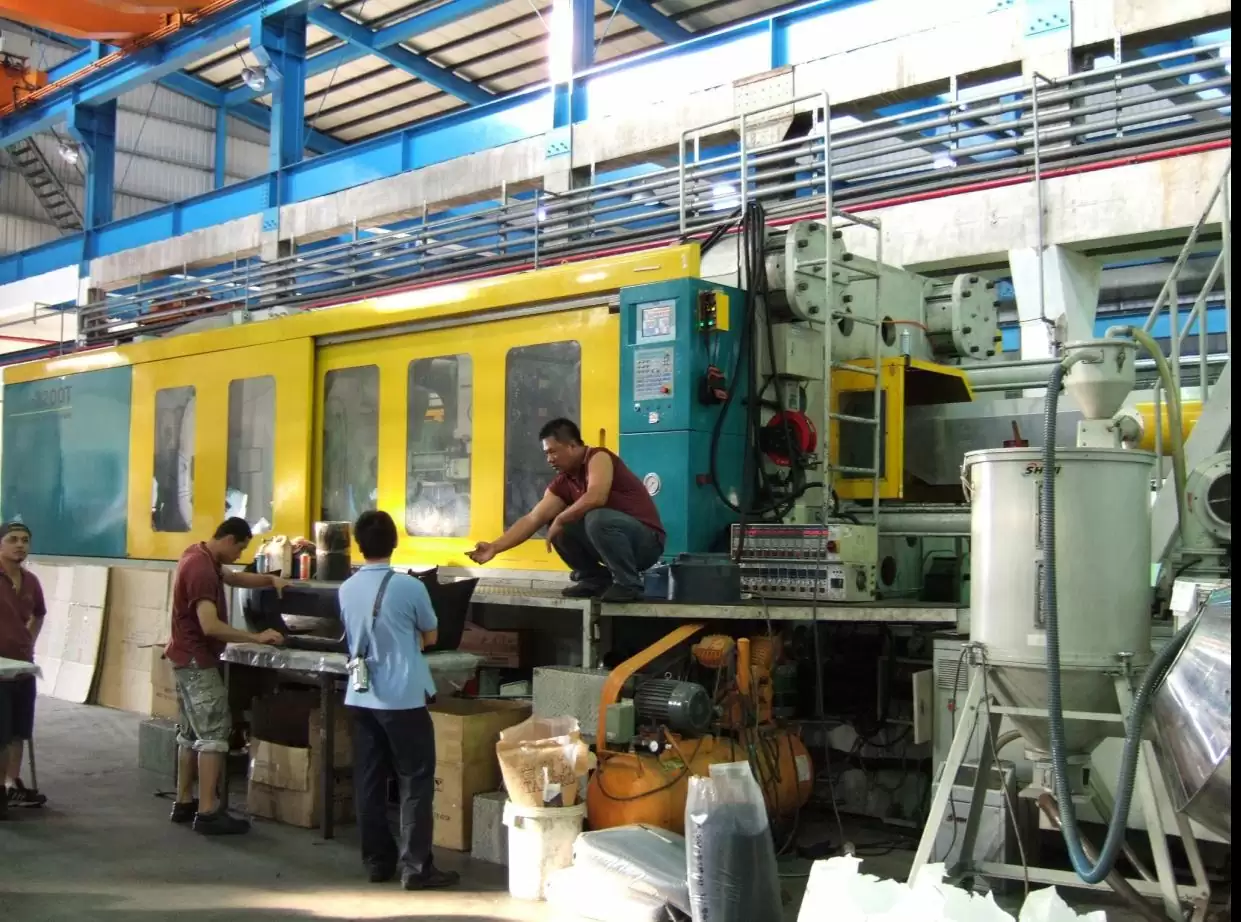

professional mold testing factory-2

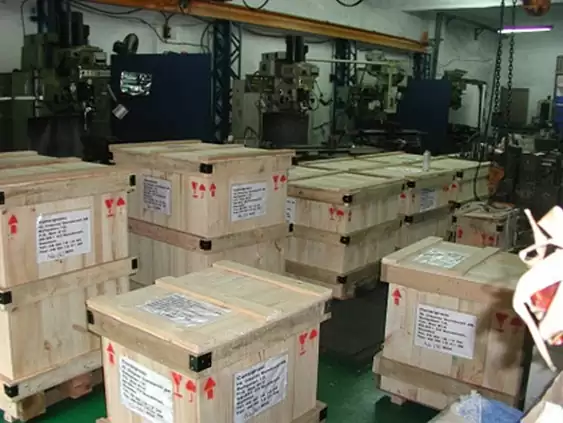

professional mold testing factory-3

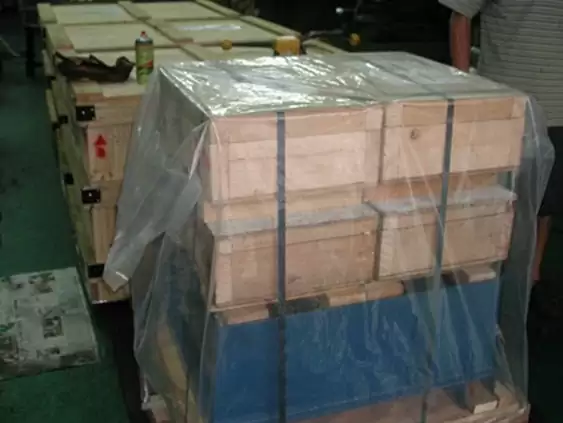

professional mold testing factory-4

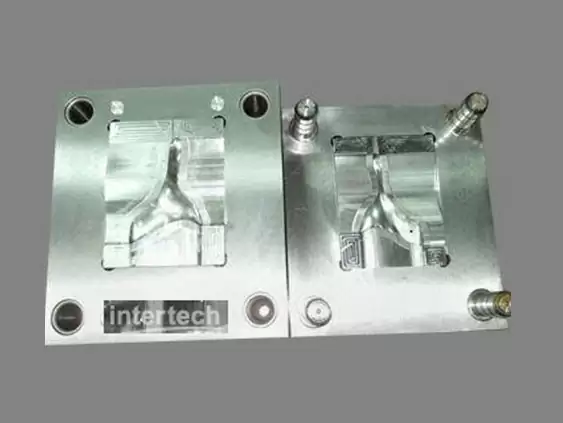

The Information of Mold



Product Name

mold

Plastic Material

PP , PE , ABS , POM , PET, PBT, Nylon + GF…..etc.
PC, PMMA Acraylic for transpartent product.

Steel of Cavity & Core

Up to customer’s budget and productivity required,
we suggest the following steel grade:
Pre- harden steel : P20 (1.2311), P20+Ni…etc
Harfen Steel : H13 (1.2344) / NAK80…etc.
Stainless steel : ASSAB Stavax…etc

Steel of Mold Base

Up to customer’s budget and requirement , we suggest different mold base steel to clients. Normal used material S50C, or P20

No. of Cavity

Customized

Hardness of Cavity & Core

Pre-Hardenss Steel : HRC 30~32+-1*
Heat Treatment Steel : HRC 50~52+-1*

Core pulling or Ejection system

Depends on the Products.
Commonly used :Motor , oil cylinder, stripping plate, angel pin, ejector pin…etc

Mould Accessories

Compatible to DME/ HASCO Standard.

Cooling System

In Core : Baffle or By pass cooling
In Cavity Plate: Chain drilling type colling

Surface Finish

Up to the prodct’s requirement, Normal used : Texture, EDM maching , Polishing

Mold Life

Up to mold steel grade, under ideal operation condition,
1. Pre-harden steel, min. 20~300000 shots
2. Harden / heat treatment steel : 60~800000 shots.
3. Stainless steel : 1 million shots.

Runner

1. Cold runner
2. Hot runner
3.cold runner +hot runner

Delivery time

40~50 days , presenting T1 samples

Packing

Standard Wooden Case

Production

We can also provide Pilot Run production and molding production


Mold Shipping Process


mold shipping process

For Professional Mold Testing Inquiry, Customer Must prepare:


If you are looking for professional mold testing service, here has nine points you need to know.


  1. Product drawing with 2D(.dwg)and 3D (.igs, .stp…etc)?

  2. Advise product material (ex. Plastic ,rubber, silicone rubber or metal…etc )?

  3. Molding machine tonnage size and platen size?

  4. The cavity number of the mold that you want us to quote?

  5. Mold steel grade that you want us to quote?

  6. Hot runner or cold runner mold required?

  7. Mold gating inlet preferred?

  8. Mold ejection way preferred?

  9. Other related information required …(ex. Polishing , texture, engraving …etc)
