Filter drain tooling
MessengerFilter drain tooling Introduce
Intertech is a leading supplier for Filter drain tooling, water filter systems tooling,making all kinds of filter drain and plastic filter tooling , filter drawing mold in Taiwan. Intertech's services include prototyping, tooling, lab testing, production and assembly.

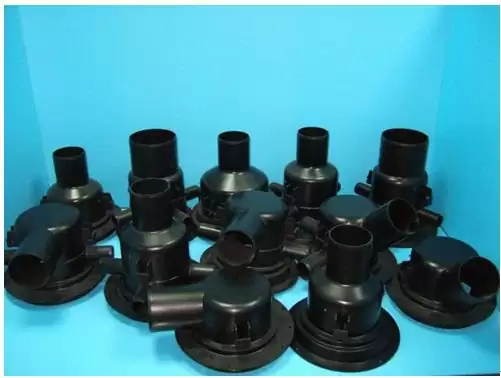

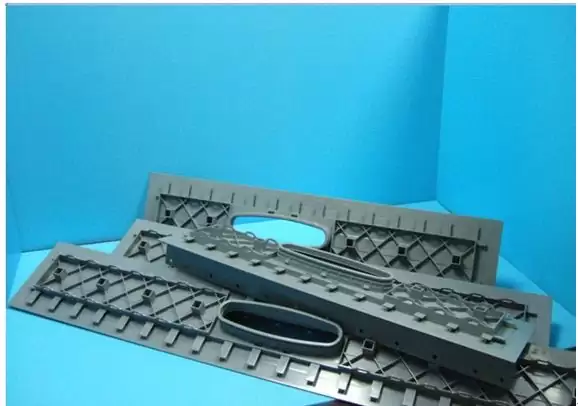

• Intertech had made a lot of water drain molds, includes all custom plastic parts , components and accessories of filter drain tooling for many European customers.

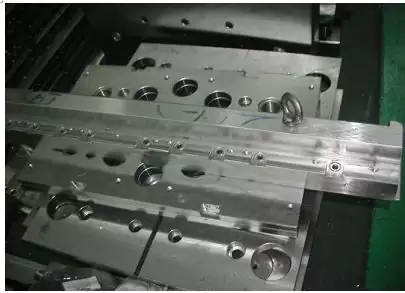

• Many of these water drain parts, components and accessories are with thread or different outlet shape and sizes. Intertech is excellent in making only one mold with interchangeable core design for changing different shape and sizes for the same or similar series product design So, customer spends only one mold cost, but they can produce many same series different shape or sizes products by only changing cores in only one mold. By doing such filter drain tooling, Intertech really saves a lot of cost for customers.
• For those customers who wants to develop the same series product but with different shape or sizes design, welcome to contact Intertech for discussing your best filter drain tooling making mold and molding solution !!!
Filter drain tooling Introduce
Intertech is a leading supplier for Filter drain tooling, water filter systems tooling,making all kinds of filter drain and plastic filter tooling , filter drawing mold in Taiwan. Intertech's services include prototyping, tooling, lab testing, production and assembly.
• Intertech had made a lot of water drain molds, includes all custom plastic parts , components and accessories of filter drain tooling for many European customers.
• Many of these water drain parts, components and accessories are with thread or different outlet shape and sizes. Intertech is excellent in making only one mold with interchangeable core design for changing different shape and sizes for the same or similar series product design So, customer spends only one mold cost, but they can produce many same series different shape or sizes products by only changing cores in only one mold. By doing such filter drain tooling, Intertech really saves a lot of cost for customers.
• For those customers who wants to develop the same series product but with different shape or sizes design, welcome to contact Intertech for discussing your best filter drain tooling making mold and molding solution !!!
Project development
Intertech Machinery is good at manufacturing plastic mold components used in industrial and packaging applications. Per customer’s demand, we will discuss the raw material required, the color master batch requires, mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customers. After that, parts design service, mold engineering service, mass production arrangement, post assembly service or post machining service are also provided.
Highlight Points:
- Our professional service includes engineering, mold making, prototyping and tooling
- From single prototype to OEM and ODM high professional volume production, We can manage all our clients plastic injection molding requirements.
- Except making mold, we also provide injection molding service, compression molding service (especial for silicone rubber material compounding with various colors matching and production job for specific product need) or punch die production service.
- our injection mold testing machine available 50~250T in house, 300~3000T in associated party.
- per each project need, we also design and provide fixture and jig making service for stabilizing some easy deformed parts need.
- per customer’s need, we also provide chrome plated, painting, ultra-sonic welding, assembly or packing/printing service.
We provide low volume, pilot run of production job and mass production for customer.
|

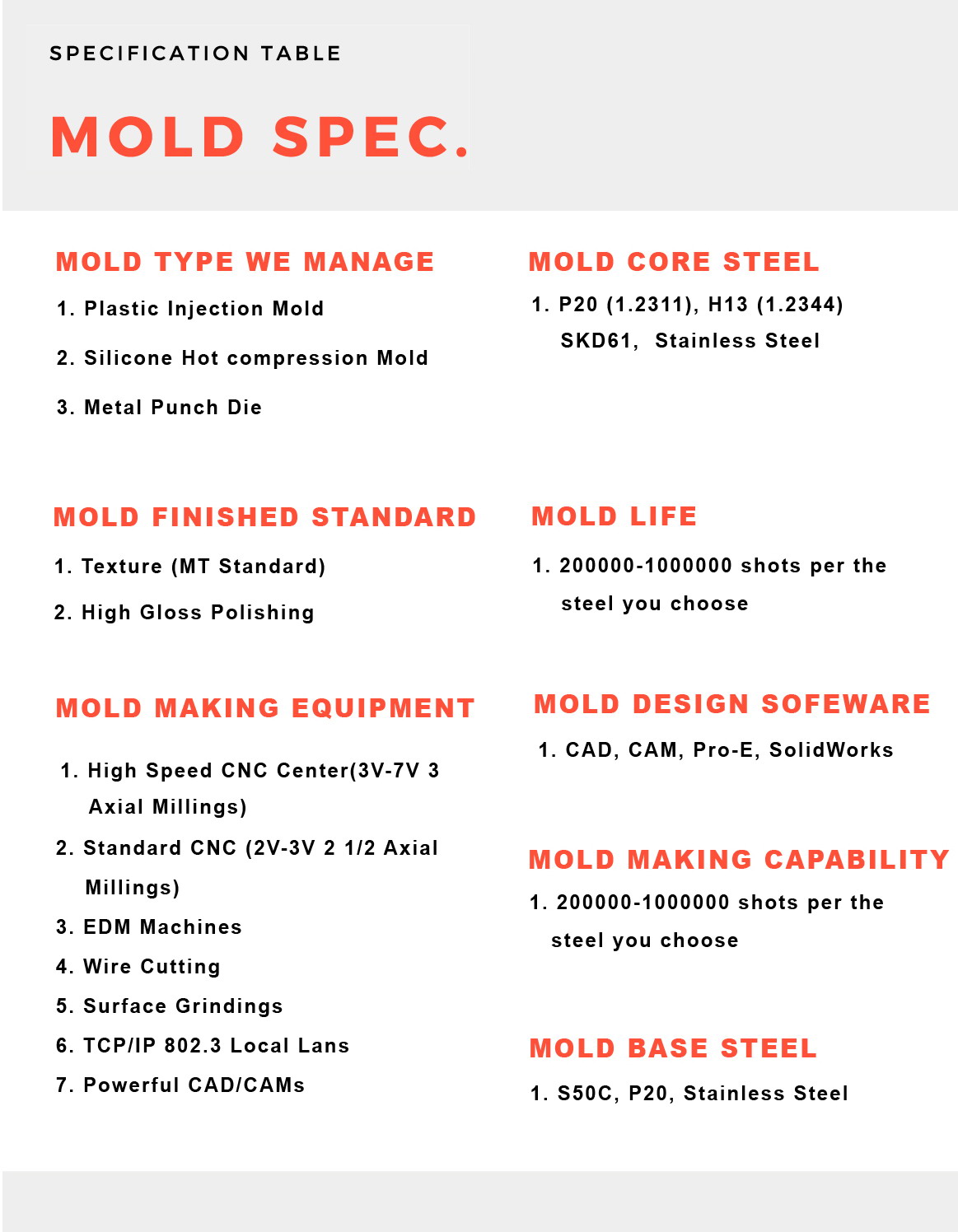

Product Name |
mold |
|
Plastic Material |
PP , PE , ABS , POM , PET, PBT, Nylon + GF…..etc. |
|
Steel of Cavity & Core |
Up to customer’s budget and productivity required, |
|
Steel of Mold Base |
Up to customer’s budget and requirement , we suggest different mold base steel to clients. Normal used material S50C, or P20 |
|
No. of Cavity |
Customized |
|
Hardness of Cavity & Core |
Pre-Hardenss Steel : HRC 30~32+-1* |
|
Core pulling or Ejection system |
Depends on the Products. |
|
Mould Accessories |
Compatible to DME/ HASCO Standard. |
|
Cooling System |
In Core : Baffle or By pass cooling |
|
Surface Finish |
Up to the prodct’s requirement, Normal used : Texture, EDM maching , Polishing |
|
Mold Life |
Up to mold steel grade, under ideal operation condition, |
|
Runner |
1. Cold runner |
|
Delivery time |
40~50 days , presenting T1 samples |
|
Packing |
Standard Wooden Case |
|
Production |
We can also provide Pilot Run production and molding production |
For plastic mold design, ..
1. The software we use includes Pro-Engineer, I-Deas, Cimetron, Auto-Cad & Solidworks.
2. Cutomer can send 2D, 3D, by .igs .stp, formats to us.
3. We can provide mold flow analysis service.
4. Mold design (with the best optimized mold water channel arrangement design and the best cycle time performance consideration design)
In addition, CNC milled prototype, 3D printing prototype, prototype mold making service, fixture / jig making or welding horn design and making are available in Intertech with good experience !
We need 2D, 3D parts design to start our job, we can sign NDA (if needed)
For mold making:
When making mold project, per customer’s requirement for mold steel material, we choose the suitable mold steel grade for our customers. We have high quality German and Japan imports mold steel material to proceed our mold project making. Then, the gating way will be discussed, the mold surface will be discussed, the mold cooling channel design will be checked, the operation style will be discussed, the molding machine size will be determined and the mold mechanism in actual production movement will all be checked as well. Only after our mold engineers discussing with our customers for the mold engineering in detail, we will proceed with our mold making job.
Taiwan Mold and Molding Factory:
l Over 30 years experience, Intertech offers customers with intelligent and cost saving mold and molding solutions to their production need in Taiwan.
l We can make the quality molds for your most complex parts and projects, including mold manufacturing, assembly, testing, and packaging.
l With 30 years experience, we manage very well in contract manufacturing, including the material selection, customer design checking, engineering discussion, tooling, pilot run, mass production, post operations, quality control and supply chain management.
l We have excellent mold making lead time, some molds 40 days, some molds even 35 days, up to your parts design.
Quick service: 100% in Taiwan
l Mold making
l Injection molding
l Tool and die making
l Tool and die production
l DFM
l Mold flow
l Conform your Industrial engineering to tooling engineering
project management by experienced engineers
l Engineering discussion is available
