Construction & building technology mold Introduce


Intertech Machinery is good at manufacturing of construction & building technology mold ,construction plastic concrete columns mold components used in mold. Per customer’s demand, we will discuss the raw material required, the color master batch requires, construction & building technology mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customer.

Parts design service, construction & building technology mold engineering service, mass production arrangement, post assembly service or post machining service are also provided, in our plastic manufacturing companies.

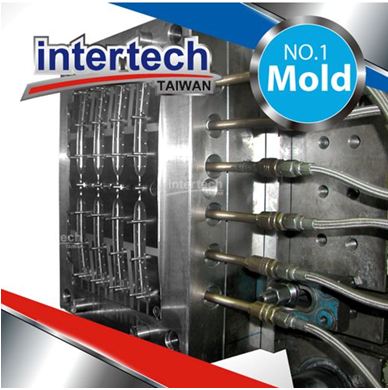

    Construction & Building Technology Mold

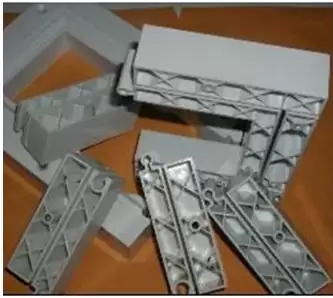

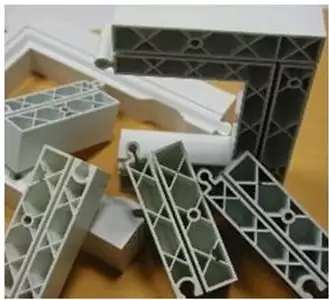

    Plastic corner block molds, Plastic Plug molds, Plastic End Plugs Molds, Plastic End Piece Molds.

    Material: Nylon Glass Fiber 30%, POM, PBT, strong impact, endurable, long life

Construction & building technology mold Introduce


Intertech Machinery is good at manufacturing of construction & building technology mold ,construction plastic concrete columns mold components used in mold. Per customer’s demand, we will discuss the raw material required, the color master batch requires, construction & building technology mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customer.

Parts design service, construction & building technology mold engineering service, mass production arrangement, post assembly service or post machining service are also provided, in our plastic manufacturing companies.

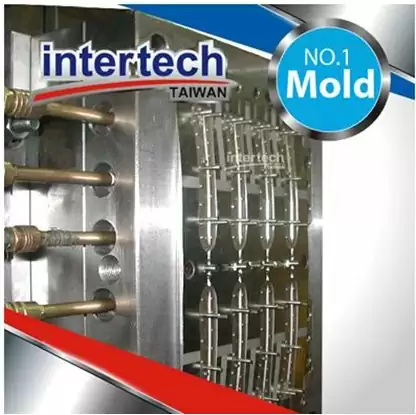

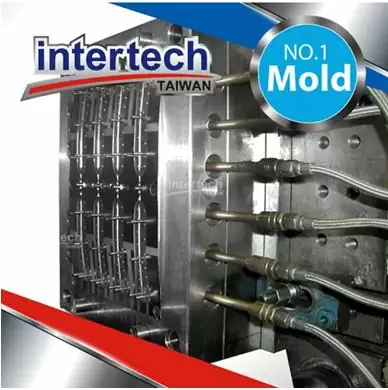

    Construction & Building Technology Mold

    Plastic corner block molds, Plastic Plug molds, Plastic End Plugs Molds, Plastic End Piece Molds.

    Material: Nylon Glass Fiber 30%, POM, PBT, strong impact, endurable, long life

Project development


Intertech Machinery is good at manufacturing plastic mold components used in industrial and packaging applications. Per customer’s demand, we will discuss the raw material required, the color master batch requires, mold making size required, molding machine size required, cycle time estimation, production time calculation report…etc with customers. After that, parts design service, mold engineering service, mass production arrangement, post assembly service or post machining service are also provided.

Each mold and molding projects case, we will see client specifications to serve the needs of a wide variety of industries. Our injection mold technology have D&B D-U-N-S compliant working system and meets high industry standards. We can mold any plastic, metal and rubber projects for customers. We have advanced machinery equipment to provide small to larger mold projects and also manufacture thermoplastic, engineering plastics, silicone rubber and metal parts.

​Highlight Points:


  • Our professional service includes engineering, mold making, prototyping and tooling
  • From single prototype to OEM and ODM high professional volume production, We can manage all our clients plastic injection molding requirements.
  • Except making mold, we also provide injection molding service, compression molding service (especial for silicone rubber material compounding with various colors matching and production job for specific product need) or punch die production service.
  • our injection mold testing machine available 50~250T in house, 300~3000T in associated party.
  • per each project need, we also design and provide fixture and jig making service for stabilizing some easy deformed parts need.
  • per customer’s need, we also provide chrome plated, painting, ultra-sonic welding, assembly or packing/printing service.

We provide low volume, pilot run of production job and mass production for customer.

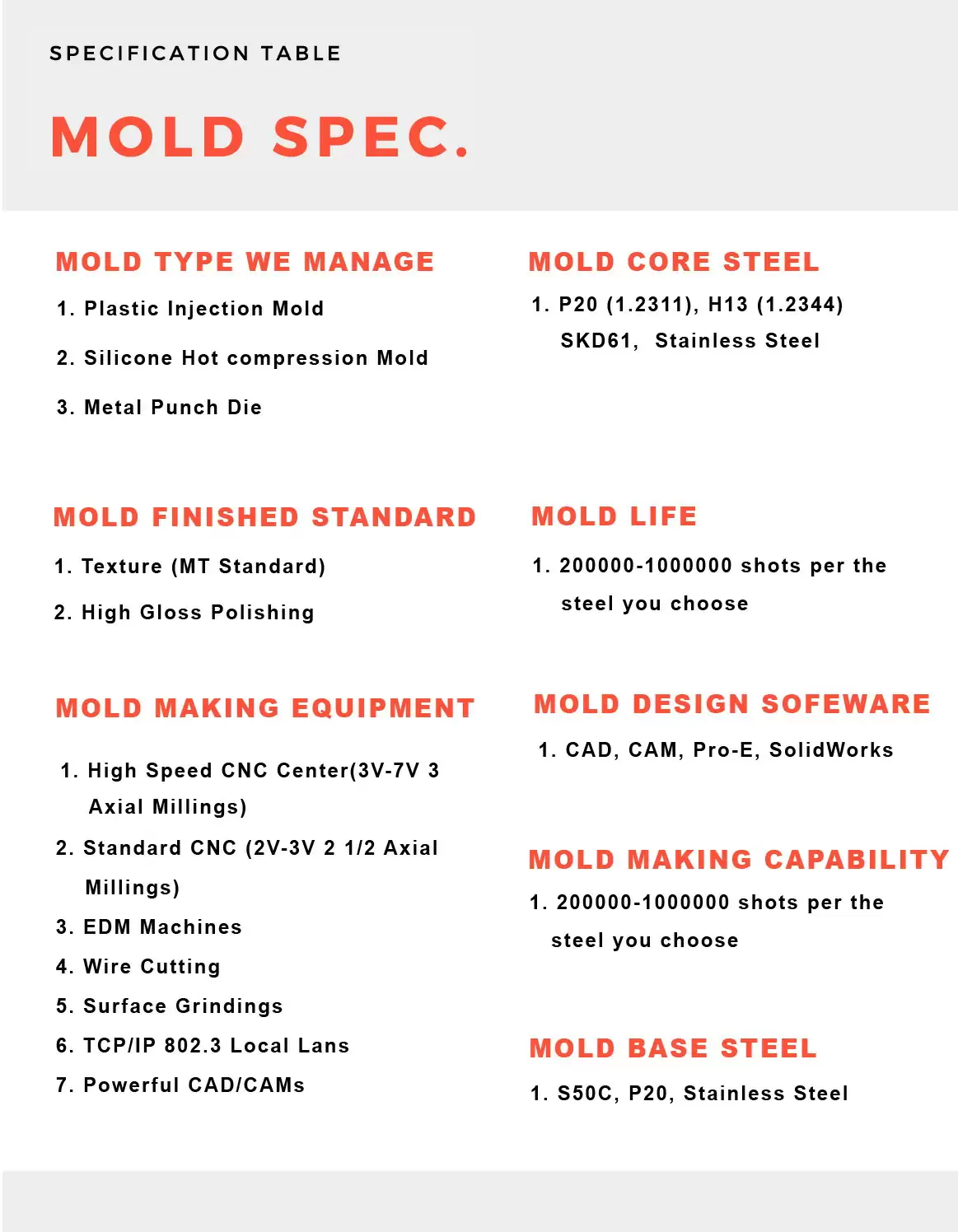

Mold specification

Product Name

mold

Plastic Material

PP , PE , ABS , POM , PET, PBT, Nylon + GF…..etc.
PC, PMMA Acraylic for transpartent product.

Steel of Cavity & Core

Up to customer’s budget and productivity required,
we suggest the following steel grade:
Pre- harden steel : P20 (1.2311), P20+Ni…etc
Harfen Steel : H13 (1.2344) / NAK80…etc.
Stainless steel : ASSAB Stavax…etc

Steel of Mold Base

Up to customer’s budget and requirement , we suggest different mold base steel to clients. Normal used material S50C, or P20

No. of Cavity

Customized

Hardness of Cavity & Core

Pre-Hardenss Steel : HRC 30~32+-1*
Heat Treatment Steel : HRC 50~52+-1*

Core pulling or Ejection system

Depends on the Products.
Commonly used :Motor , oil cylinder, stripping plate, angel pin, ejector pin…etc

Mould Accessories

Compatible to DME/ HASCO Standard.

Cooling System

In Core : Baffle or By pass cooling
In Cavity Plate: Chain drilling type colling

Surface Finish

Up to the prodct’s requirement, Normal used : Texture, EDM maching , Polishing

Mold Life

Up to mold steel grade, under ideal operation condition,
1. Pre-harden steel, min. 20~300000 shots
2. Harden / heat treatment steel : 60~800000 shots.
3. Stainless steel : 1 million shots.

Runner

1. Cold runner
2. Hot runner
3.cold runner +hot runner

Delivery time

40~50 days , presenting T1 samples

Packing

Standard Wooden Case

Production

We can also provide Pilot Run production and molding production


For plastic mold design, ...


1. The software we use includes Pro-Engineer, I-Deas, Cimetron, Auto-Cad & Solidworks.

2. Cutomer can send 2D, 3D, by .igs .stp, formats to us.

3. We can provide mold flow analysis service.

4. Mold design (with the best optimized mold water channel arrangement design and

the best cycle time performance consideration design)


In addition, CNC milled prototype, 3D printing prototype, prototype mold making service, fixture / jig making or welding horn design and making are available in Intertech with good experience !

We need 2D, 3D parts design to start our job, we can sign NDA (if needed)


Get a mold quote


For mold making:

When making mold project, per customer’s requirement for mold steel material, we choose the suitable mold steel grade for our customers.  We have high quality German and Japan imports mold steel material to proceed our mold project making. Then, the gating way will be discussed, the mold surface will be discussed, the mold cooling channel design will be checked, the operation style will be discussed, the molding machine size will be determined and the mold mechanism in actual production movement will all be checked as well.  Only after our mold engineers discussing with our customers for the mold engineering in detail, we will proceed with our mold making job.


Intertech - Quick Look :

l  If you want to have your product to reverse manufacture, we can help you with our rich manufacturing experience.

l  If your current supplier is becoming cost prohibitive, we can help you to find a cost effective solution.

l  You can send samples, and we can design, manufacturer and ship a finished product to USA or wherever the place you want us to export.

l  We can work out total cost of the project and the cost per piece.

l  If you are saling some products now, we can help you to develop better products idea and manufacturing it with the best possible solution supply chain in Taiwan, including product packing and printing supply.




Taiwan Mold and Molding Factory:

l  Over 30 years experience, Intertech offers customers with intelligent and cost saving mold and molding solutions to their production need in Taiwan.

l  We can make the quality molds for your most complex parts and projects, including mold manufacturing, assembly, testing, and packaging.

l  With 30 years experience, we manage very well in contract manufacturing, including the material selection, customer design checking, engineering discussion, tooling, pilot run, mass production, post operations, quality control and supply chain management.

l  We have excellent mold making lead time, some molds 40 days, some molds even 35 days, up to your parts design.



Quick service: 100% in Taiwan

l  Mold making

l  Injection molding

l  Tool and die making

l  Tool and die production

l  DFM

l  Mold flow

l  Conform your Industrial engineering to tooling engineering

project management by experienced engineers

l  Engineering discussion is available
