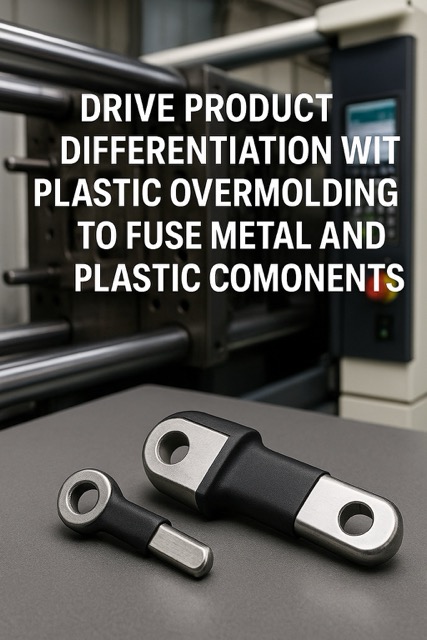

Drive Product Differentiation with Plastic Overmolding to Fuse Metal and Plastic Components
Drive Product Differentiation with Plastic Overmolding to Fuse Metal and Plastic Components
When you combine a precision-machined metal core with an injection-molded plastic shell in a single clamp cycle, you unlock a design space competitors can’t duplicate with screws, glue, or post-assembly snap-fits. Plastic overmolding transforms ordinary inserts into high-value, hybrid parts that look better, feel better, and last longer—all while trimming bill-of-materials count and assembly time. Below is a proven blueprint—refined inside the TaiwanMoldMaker.com partner network—for using metal-plastic overmolding as a fast track to product differentiation.
1 Competitive Advantages of Metal-Plastic Overmolding
Differentiator | How Overmolding Delivers Value |
---|---|
Luxury Aesthetics | Exposed metal edge radiates quality; seamless plastic adds color, texture, or soft-touch grip—all in one shot. |
Strength-to-Weight | Thin-wall aluminum or steel core provides stiffness; lower-density plastic cuts grams without sacrificing strength. |
Integrated Sealing | TPE overmolded gaskets achieve IP 67/68 protection—eliminating separate O-rings and manual assembly. |
Cost-Down Assembly | One clamp cycle can replace 3–7 fastening or adhesive steps, saving US $0.10–0.40 per unit at scale. |
Corrosion Isolation | Plastic encapsulation shields metal from sweat, road salt, or chemicals—boosting service life and warranty confidence. |
2 Design Fundamentals—Lock In Success Up Front
-
Mechanical Locks
• Add through-holes, dovetail slots, or knurled ribs ≥ 0.25 mm deep in the metal to boost pull-out force by 30–50 %. -
Surface Preparation
• Grit-blast (Ra ≈ 2.5 µm) and degrease inserts to ensure wet-out; plating must be compatible with molten polymer temperature. -
Insert Venting
• Ø 0.8–1.0 mm vent holes every 25–30 mm let trapped air and cleaning fluids escape—preventing void streaks. -
Wall-Thickness Harmony
• Target plastic thickness at 0.6–1.0 × metal stock so shrinkage is balanced; add ribs instead of thick plastic pads. -
Mold Temperature
• Keep steel 15–25 °C warmer than conventional molding; hotter skins improve adhesion and surface finish.
3 Material Pairings That Win Projects
Metal Insert | Plastic Overmold | Typical Applications |
---|---|---|
6061-T6 Aluminum | GF-Nylon 66 | E-Mobility brackets, drone frames |
304 Stainless | Medical-grade PC | Autoclavable surgical handles |
Copper Alloy C145 | Transparent PC-ABS | Premium audio knobs, potentiometer shafts |
Cold-Rolled Steel | Shore A 70 TPE-V | Automotive pedal pads, tool grips |
Zinc-Die-Cast | FR-PC/ABS V-0 | Smart-home hub enclosures |
4 Manufacturing Cell Anatomy
-
Precision Fixture / Nest – Holds insert ± 0.05 mm; spring-loaded or magnetic pins speed robot placement.
-
Presence Sensors – Optical or inductive check before shot; no insert = no cycle.
-
Valve-Gate Hot Runner – Keeps gate vestige small on Class-A surfaces; balanced flow prevents knit lines.
-
Inline SPC – Vision system inspects flash and short shots; automatic pull-tests run on 1 % AQL.
-
MES Dashboard – Live CpK, OEE, and energy data visible to your team via API—perfect for ISO 9001, IATF 16949, or ISO 13485 audits.
5 Case Snapshot—Wearable Fitness Tracker
Metric | Legacy Design (Die-Cast + Snap-On Cover) | Overmolded Hybrid |
---|---|---|
Components | 4 | 1 |
Assembly Time | 90 s | 18 s |
Water-Ingress Failures (IP X8 test) | 3.7 % | 0.4 % |
Part Cost @ 250 k pcs | US $1.92 | US $1.53 |
Outcome: launch pulled in by four weeks, plus a 200 mAh battery life gain from weight reduction.
6 Scale Efficiently with TaiwanMoldMaker.com
Your Challenge | Turn-Key Solution |
---|---|
Tight launch window | 48-Hour Overmold DFM Pack—gate, flow, and thermal map. |
Pilot volumes first | Aluminum bridge tool (500–5 000 shots) credited toward H13 steel. |
Complex gating geometry | 3-plate or servo valve-gate hot-runner design in-house. |
Regulatory compliance | IATF 16949 & ISO 13485 certified cells, complete DHR & PPAP. |
Quick Links
-
✔️ Mold Service
-
✔️ Molding
7 Action Plan—Fuse Strength & Style Today
-
Upload your metal-insert CAD and plastic shell geometry.
-
Receive a 48-hour feasibility & cost pack—adhesion spec, cycle-time model, and ROI curve.
-
Green-light bridge tooling; see T-0 hybrid samples in as little as three weeks.
-
Approve steel production mold and ramp confidently to hundreds of thousands of premium, stand-out parts.
One shot, two materials, unlimited differentiation. Let TaiwanMoldMaker.com turn your metal-plastic concept into a mass-production reality—fast, reliable, and distinctly yours.
