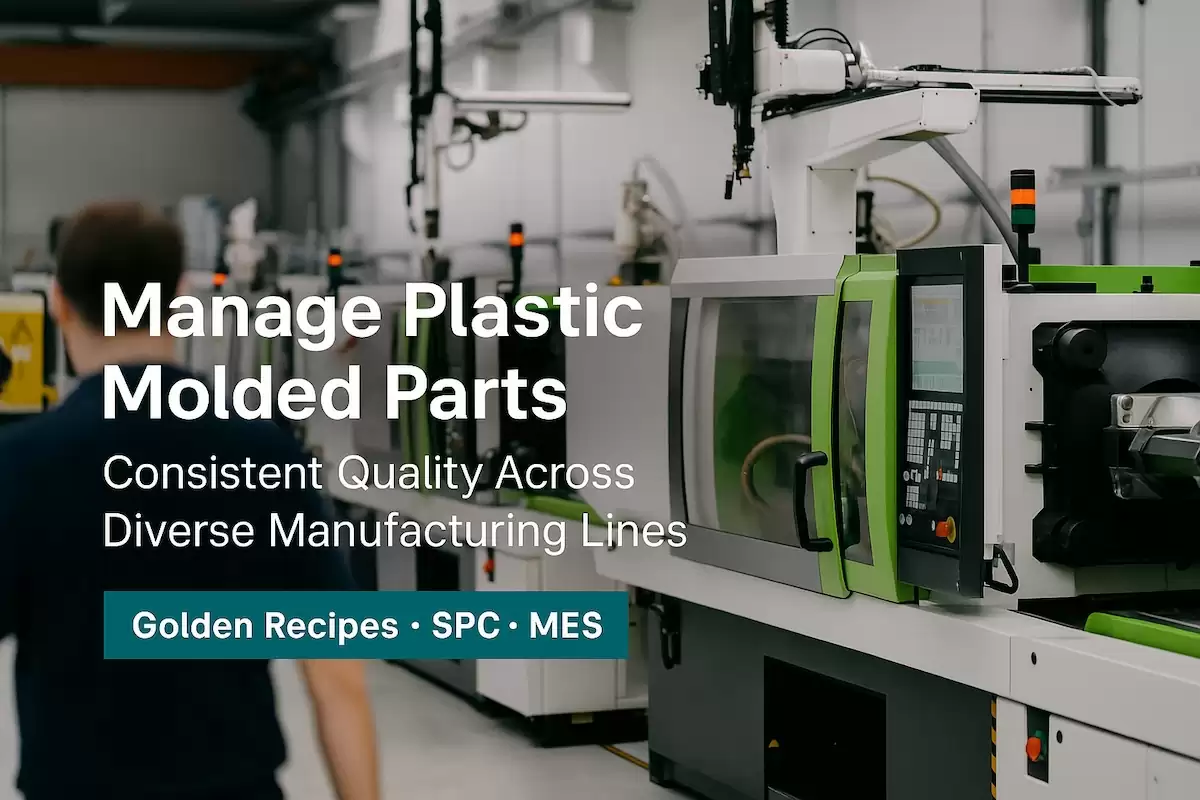

Manage Plastic Molded Parts for Consistent Quality Across Diverse Manufacturing Lines

Golden recipes • Data-driven SPC • Replicable tooling & processes

Scaling from one pilot press to multiple factories is where quality drifts—unless you engineer design, tooling, process, materials, metrology, and data as a single system. With the TaiwanMoldMaker.com network, you can launch fast on a pilot cell, then copy-cavity and replicate across lines and regions with auditable results and stable CpK.

Explore our end-to-end workflow from DFM to automated production:
Custom Mold & Design Maker • Mold Service • Injection Mold • Molding • Customer Examples • Contact

Why Cross-Line Consistency Is Hard (and How We Solve It)

Typical failure modes: uneven cooling (ΔT drift), valve timing differences, resin/lot variability, regrind policy gaps, uncalibrated gauges, and undocumented “tribal settings.”
Our approach: lock a transfer-ready design, build replicable tooling, instrument the cell, and govern the process by cavity pressure + MES, not opinions.

1) Design & DFM Built for Replication

Uniform walls & ribs (ribs ≈ 40–60% of wall); core-heavy bosses to prevent sink across presses.
Gates & manifolds: hot runner with valve/sequential control; film/fan gates for skins; knit-line relocation defined in DFM.
Cooling map: parallel circuits; channel Ø/depth/pitch sized for Reynolds > 4,000; ΔT ≤ 5 °C. Conformal inserts at hot spots.
Transfer package (48 hours): gating/cooling/warpage plan, CPU & cycle model, risk register, and control-plan draft.
Start here → Custom Mold & Design Maker

2) Tooling Parity & Serviceability

Steel & surfaces: H13/S136 where appropriate, SPI grades aligned to cosmetics; wear areas on replaceable inserts; coatings (TiN/DLC) when fillers run.
Sensor ports: standard locations for cavity pressure and near-wall thermocouples in every copy tool.
Hot runner parity: identical nozzles/pins/heaters/TCs and recipes; spare kits mirrored across plants.
PM/SMED: quick-couplers and standardized spare lists keep uptime consistent.
Tool builds and standards → Mold Service • Components overview → Injection Mold

3) Process Control: From Pilot to Many Lines

Scientific molding: set V/P transfer by cavity pressure, not screw position; confirm gate freeze via weight ladder.
DOE windowing: define the proven acceptable range (melt/mold temp, fill speed, pack profile, cooling flow).
Golden recipe: store setpoints & pressure envelopes in MES; alarms = auto containment + hold.
Re-qual triggers: material change, tool refurbishment, or press move → quick short-form OQ/PQ with capability checks.
On-press implementation → Molding

4) Materials Governance (Lot-to-Lot Stability)

Approved resin list with alternates; MFR windows documented; moisture limits and drying SOPs.
Color governance: masterbatch % and residence-time limits; ΔE targets and light-booth checks by cavity.
Regrind policy by SKU with CTQ guard tests (impact, torque, leak).
PCR/Bio options documented for ESG while protecting CTQs.
Material / grade trade-offs → Injection Mold

5) Measurement & Vision: One Language for Quality

MSA first: GR&R on gauges; shared golden masters and fixtures for all sites.
Metrology: FAIR + CMM/blue-light; color ΔE/gloss; force/torque/leak as applicable.
Vision SPC: 2D/3D cameras per line for flash/short/gate vestige and color boundaries; rules logged in MES.
See example packs → Customer Examples

6) MES & SPC Across Lines (What We Track)

OEE, CpK @ CTQs, scrap, energy (kWh/kg) and lot genealogy per line/cavity.
APIs push events into your ERP/QMS; dashboards highlight drift before it becomes scrap.
Audit evidence: cavity-pressure curves, param histories, vision classifications, and COAs all tied to lot numbers.
Data layer & dashboards → Molding

7) Multi-Plant Transfer Playbook

Pilot build on reference press → DOE + golden recipe.
Copy-tool & line setup using the same hardware list, sensors, EOAT, and PM plan.
Short-form OQ/PQ at each new site; match pressure envelopes and capability.
Run-at-rate + packaging validation, then SOP with mirrored spare kits & training.
We handle the program management → Mold Service

Representative Outcomes (Typical Ranges)

KPI	Before (uncontrolled)	After (managed across lines)
Dimensional CpK @ CTQs	1.20–1.35	≥ 1.67 launch; ≥ 2.00 steady
Scrap rate	2.0–3.0%	≤ 0.8–1.2% with vision + guardrails
OEE	65–75%	88–92%
Energy (kWh/kg)	0.55–0.70	0.40–0.50
Re-qual time (new site)	Weeks	2–5 days with copy kit + short OQ/PQ

Actuals vary by geometry, resin, and tooling.

RFQ Template (Copy/Paste)

Subject: RFQ – Managed Multi-Line Injection Molding (Consistency Across Sites)
Attachments: STEP/IGES + 2D with CTQs & cosmetic map

Annual volume by region; ramp plan; first PO quantity
Resin(s) & alternates (MFR; GF/FR/UV/food-contact); regrind % limits
Cosmetic spec (SPI texture, ΔE/gloss); gate/knit keep-outs
Tooling plan: cavity count; valve vs. cold; conformal-cooling candidates; sensor ports
Validation: FAIR, CMM/scan, GR&R, CpK @ CTQs targets; PPAP/IQ-OQ-PQ scope
Automation: EOAT demold/insert; in-cell mark/weld/leak; vision SPC rules
Data & traceability: MES access, genealogy, energy (kWh/kg), ERP/QMS API needs
Packaging & logistics: labels, pallet map, export marks; Incoterms & milestones (T0/T1/buy-off/SOP)

We’ll convert this into a 48-Hour DFM & Control-Plan Pack.
→ Contact • Or start here: Custom Mold & Design Maker

Why TaiwanMoldMaker.com

One accountable owner from DFM to multi-plant SOP.
Replicable tooling & cells: valve-gated multi-cavity, conformal cooling, standardized sensors/EOAT.
Data-driven stability: scientific molding, vision SPC, and MES dashboards for OEE/CpK/scrap/kWh/kg.
Explore services & examples:
Injection Mold • Molding • Customer Examples

Call to Action

Ready to manage plastic molded parts for consistent quality across diverse manufacturing lines? Send your CAD and targets to receive a 48-Hour DFM & Control-Plan Pack—gating/cooling design, golden-recipe setup, validation scope, and a multi-site replication plan.
→ Request an Instant Quote
