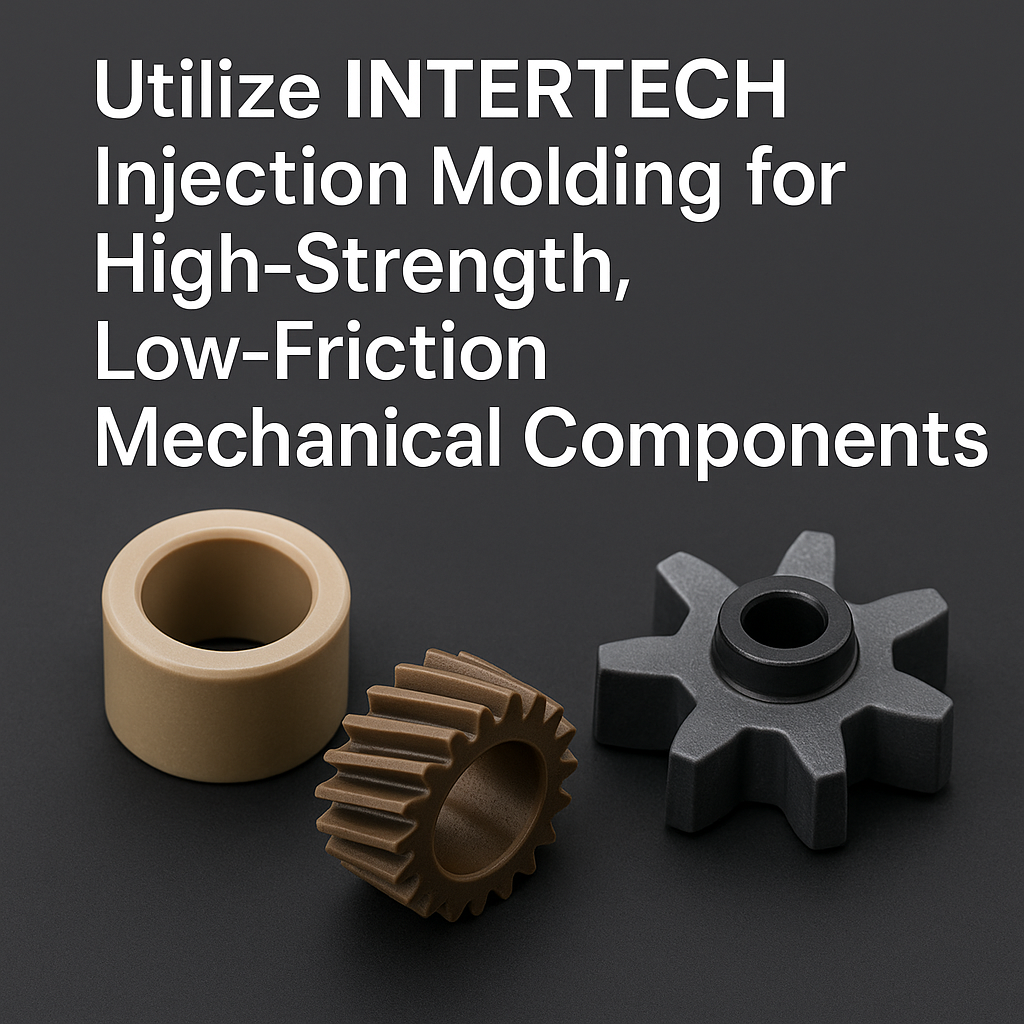

Utilize INTERTECH Injection Molding for High-Strength, Low-Friction Mechanical Components

When gears must run quietly for 10 million cycles or a sliding bushing must out-last metal—and do it at one-third the weight—INTERTECH’s precision injection-molding platform delivers. By combining advanced mold design, science-based processing, and a library of reinforced, self-lubricating polymers, INTERTECH produces parts that shrug off wear while holding micron-level tolerances. Below is a practical guide to leveraging INTERTECH for demanding mechanical applications in automation, e-mobility, and industrial equipment.

1 Material Formulations Engineered for Strength and Low Friction

Polymer Family	Typical Additives	Key Performance Wins	Ideal Components
POM / Acetal	PTFE, silicone, graphite	Coefficient of friction ≤ 0.15; no stick-slip	Gears, worm wheels, sleeve bearings
Glass-Fiber PA 66	30–50 % GF + MOS₂	Tensile strength 200 MPa; surface PV > 0.8 MPa·m/s	Belt-tension rollers, pulley hubs
PEEK	Carbon fiber, PTFE, graphite	250 °C service temp; wear factor K ≤ 2×10⁻⁸	High-speed pump vanes, aerospace valve seats
LCP (Liquid Crystal Polymer)	30 % GF	Mold shrink ≤ 0.1 %; dry-run safe	Micro-gears, precision cams, connector sliders
TPU Over-mold on Nylon	Oil-resistant elastomer	Quiet cam followers, vibration damping	Sprocket idlers, linear-guide bumpers

INTERTECH keeps core grades in stock and can sample custom compound blends in ≤ 10 days.

2 INTERTECH Process Advantages at a Glance

Capability	How It Boosts Mechanical Performance
Scientific Molding – cavity-pressure sensors and DOE-locked windows	CpK ≥ 1.67 on tooth thickness; eliminates load-noise variation
Conformal-Cooling Inserts & BeCu Cores	15–30 % faster cycles; uniform crystalline morphology → consistent modulus
In-Mold Lubricant Dosing	PTFE micro-capsules infused at gate for even distribution; zero dry-lubricant streaks
Mold-Flow Fiber-Orientation Simulation	Aligns glass/carbon fibers along load path; raises fatigue life 40 %
Automated Vision & Torque Testing	100 % gear tooth-span measurement; rejects any part with out-of-spec startup torque

3 Design Guidance for Strong, Low-Wear Parts

Wall Thickness – Keep between 1.2 – 3 mm; taper ribs 50 % at root to minimize sink and maintain fiber alignment.
Draft – ≥ 0.5° on load flanks ensures scratch-free ejection while preserving flank geometry.
Fillet Radii – ≥ 0.25 mm where fibers turn; reduces notch factor and squeak under dry sliding.
Gate Location – Place opposite primary load face; promotes favorable fiber flow into tooth root.
Surface Texture – SPI B-1 (600 Grit) on flank lowers initial break-in noise yet maintains oil retention.

INTERTECH’s DFM team supplies Moldflow snapshots and draft-gate studies within 48 hours of RFQ.

4 Mini-Case: 60-Tooth Spur Gear for Autonomous AGV Drive

Metric	Previous Supplier	INTERTECH Solution
Material	GF-PA 66	PTFE-graphite-POM
Peak Torque Fail (Nm)	8.4	9.9
Acoustic (dBA @3 k rpm)	68 dB	60 dB
Life to 10 % Wear	4 k hr	10 k hr
Unit Cost	US $1.12	US $1.18 (+5 %)
TCO (gear + lube + downtime)	—	–38 % overall

5 Validation & Scale-Up Pathway

Phase	Lead-Time	Deliverables
Prototype Aluminum Tool	2 – 3 weeks	200 pcs for form-fit-function tests
Pilot P20 Tool (single cavity)	+3 weeks	2 k pcs, torque & noise CpK study
Multi-Cavity H13 Tool	+5 weeks	100 k pcs/month, SPC dashboard access
PPAP / FAI	Concurrent	Level 3 package, IMDS, material CoA

All production runs ship with torque histogram, cavity-pressure trace, and lot genealogy linked to resin batch.

6 Why INTERTECH via TaiwanMoldMaker.com?

ISO 9001 & IATF 16949 Certified – Automotive-grade process control for every industry.
On-Site Tribology Lab – Pin-on-disk, PV limit, and friction coefficient validation in-house.
Integrated Post-Ops – CNC gear hobbing, cryogenic deburring, laser marking under one roof.
Rapid ECO Support – Steel-safe mod or insert swap in ≤ 72 h; design tweaks don’t derail timelines.

7 Getting Started

Upload 3-D CAD & Load Case – INTERTECH returns a no-charge DFM + material suggestion within 48 h.
Approve Prototype Tool – Quick-cut aluminum inserts let you test real friction & strength fast.
Lock Process Window – INTERTECH runs DOE & cavity-sensor tuning before scale-up.
Monitor Live KPIs – Access cloud dashboard for CpK, OEE, and reject trends—any time, any shift.

Ready to build lighter, quieter, longer-lasting mechanics? Contact TaiwanMoldMaker.com to connect with INTERTECH and turn advanced material science into competitive advantage.
