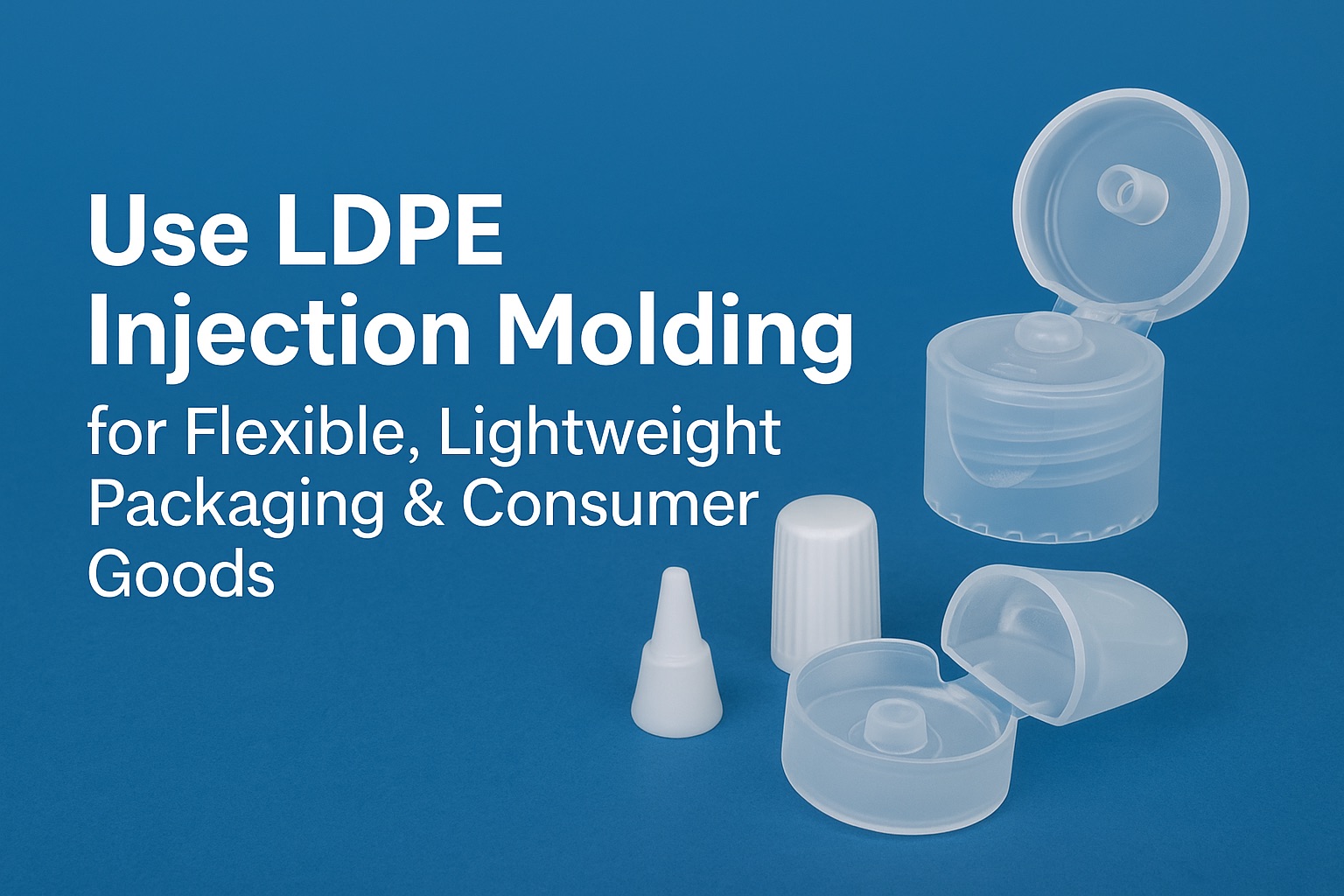

Use LDPE Injection Molding for Flexible, Lightweight Packaging & Consumer Goods
Use LDPE Injection Molding for Flexible, Lightweight Packaging & Consumer Goods
Low-density polyethylene (LDPE) is the champion resin for soft-touch lids, living hinges, squeezable dispensers, and impact-tolerant housings. When it’s molded correctly, LDPE delivers a unique blend of flexibility, chemical resistance, and cost efficiency that rigid polymers—or blow-molded bottles—can’t match. Below is a concise playbook for getting the most out of LDPE injection molding and how TaiwanMoldMaker.com streamlines every step from tool design to high-volume production.
1 Why Choose LDPE Over Other Resins?
Performance Metric | LDPE | PP | HDPE | EVA |
---|---|---|---|---|
Flexural Modulus | 150–300 MPa (soft, hinge-friendly) | 1 100 MPa | 1 200 MPa | 20–100 MPa |
Impact at 23 °C | No break | Good | Very good | Good |
Transparency | Translucent | Translucent | Opaque | Clear |
Stress-Crack Resistance | Excellent | Moderate | Very good | Good |
Food-Contact Compliance | FDA, EU | FDA, EU | FDA, EU | Limited |
Takeaway: LDPE bends but rarely breaks—ideal for caps, dispensers, and protective packaging inserts where user comfort and safety trump high stiffness.
2 Processing Best Practices
Parameter | Recommended Window | Purpose |
---|---|---|
Melt Temp | 180 – 200 °C | Prevents chain scission & burn marks |
Mold Temp | 20 – 40 °C | Shortens cycle, retains gloss |
Injection Speed | Medium-High | Fills thin-wall gates before freeze-off |
Back Pressure | 3 – 5 bar | Uniform melt & color dispersion |
Holding Pressure / Time | 40–60 % of peak / 3–5 s | Controls sink without over-packing |
Vent Depth | 0.02 mm | Eliminates diesel marks in flexible walls |
Pro-tip: LDPE’s low viscosity lets you design living hinges down to 0.25 mm—just be sure to gate on the opposite end to maximize flow.
3 Design Guidelines for Flexible Parts
-
Wall Thickness – 0.6 – 1.2 mm for snap lids; up to 2 mm for squeeze bottles or protective corners.
-
Radii & Fillets – ≥ 0.5 × wall to avoid stress whitening.
-
Undercuts – Stripper plates or collapsible cores recommended; LDPE can stretch 30 %+ for easy de-mold.
-
Living Hinges – Gate into the hinge spine; polish to SPI-A2 for maximum cycle life (> 1 000 folds).
-
Textures – VDI 27–30 masks flow lines without trapping debris—essential for cosmetics and OTC packaging.
4 High-Value Applications
Market | LDPE Injection-Molded Parts |
---|---|
Personal-Care & Cosmetics | Flip-top caps, lotion pumps, soft-touch jar liners |
Food & Beverage | Tamper-evident spouts, squeeze-pack tabs, freezer-safe lids |
Household Chemicals | Detergent closures, trigger sprayer gaskets, refill pouches (insert-mold fitments) |
Consumer Electronics | Protective shipping trays, soft button covers, gasketed battery doors |
Healthcare | Dropper tips, IV-bag ports, single-dose pill packs (ISO 13485 grades available) |
5 Cutting Cost & Lead Time With TaiwanMoldMaker.com
Challenge | Our Solution |
---|---|
Thin-wall flow hesitations | Moldflow® analysis + hot-runner valve gating in the 48-Hour DFM Pack |
Tight launch schedule | Aluminum bridge molds deliver EVT samples in 10–15 days |
Large color or scent lineup | Quick-change screw tips & purging protocols keep changeovers < 30 min |
Sustainability targets | PCR-LDPE trials and density-reduction (chemical foam) options |
Duty exposure | Up to 35 % of PO billed as engineering service—typically duty free |
One-Click Service Links
-
✔️ Molding
-
✔️ Mold Service
6 Next Steps—Bring Your LDPE Project to Life
-
Upload your CAD & annual volume (NDA-protected portal).
-
Get a 48-Hour LDPE DFM & cost pack—tooling price, part cost ladder, cycle-time, and duty-saving options.
-
Approve the bridge-tool quote and receive production-grade LDPE parts in as little as two weeks.
Lightweight, flexible, and cost-efficient—LDPE injection molding delivers all three. Partner with TaiwanMoldMaker.com to turn your next packaging or consumer-goods idea into commercial reality—fast, compliant, and built for scale.
