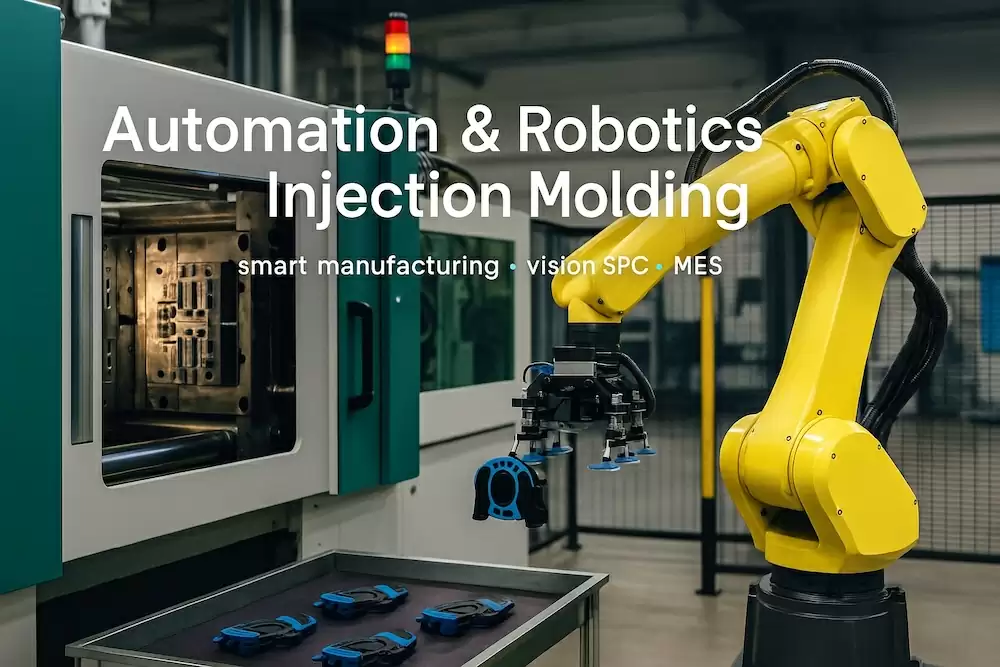

The Role of Automation and Robotics in Modern Injection Molding Factories

injection molding automation • smart manufacturing • robotic injection molding

Automation is no longer a bolt-on accessory—it’s the operating system of competitive molding plants. The right mix of robotics, vision, MES, and sensorized tooling lifts throughput, lowers labor cost, stabilizes quality, and shortens time-to-scale. With the TaiwanMoldMaker.com network, you can implement a modular, auditable roadmap from prototype cells to lights-out runs.

Explore our end-to-end path from DFM to automated production:
Custom Mold & Design Maker • Mold Service • Injection Mold • Molding • Customer Examples • Contact

Why Automate Injection Molding?

Throughput & uptime: faster take-out, shorter changeovers (SMED), fewer stoppages.
Quality at speed: vision SPC and cavity pressure guardrails reduce escapes and rework.
Labor reallocation: robots handle repetitive/dexterous tasks; operators move to value-add QC and maintenance.
Traceability & ESG: MES consolidates OEE, CpK, scrap, energy (kWh/kg) with lot genealogy.
See how we integrate automation into real programs: Molding • Examples: Customer Examples

The Automation Stack (What a Modern Cell Looks Like)

Layer	What’s Inside	Why It Matters
Robotics	6-axis, SCARA, Cartesian; EOAT for take-out, insert-load, degate	Shorter cycles, consistent handling
Inline Processes	Pad print, laser mark, ultrasonic weld, leak-test, cut/trim	Eliminates extra moves & WIP
Sensing	Cavity pressure, near-wall thermocouples, flow/ΔT on cooling	Scientific molding control
Vision SPC	2D/3D cameras for flash/shorts/gate blush/color ΔE	100% inspection at speed
MES	OEE, CpK, scrap, energy, genealogy, API to ERP	Real-time decisions, audit trail
Logistics	AMR/AGV to move trays; smart racks & labels	Low touch, fewer handling errors

Plan the architecture in 48 hours with DFM + cell concept: Custom Mold & Design Maker

Robots in the Press: Where They Pay Back

High-speed take-out & stack: shave 0.5–1.5 s per cycle; protect A-surfaces.
Insert molding: metal pins, threaded inserts, batteries/PCBs for hybrids; poka-yoke nests.
2K/overmold transfers: synchronized robot handoff between stations.
Family tools: smart picking by cavity/variant; barcode/QR traceability.
Heavy parts & large tools: safe demold with end-effectors tuned for CG and stiffness.
See our tooling interfaces and EOAT options: Injection Mold • Build & service: Mold Service

From “Automated” to Smart Manufacturing

Smart manufacturing connects the cell so it can measure, decide, and document:

Scientific molding: transfer from velocity to pressure using cavity pressure, not just screw position.
Golden recipe: guarded setpoints for fill/pack/cool; envelopes for pressure curves; auto-containment when out of bounds.
Vision + MES: classify scrap by cause, trigger alerts, and log every lot into genealogy.
Energy dashboards: kWh/kg per SKU; cooling ΔT and flow stability reports.
Get the data layer right on Day 1: Molding

Lights-Out (Dark) Factory: What’s Realistic?

A “lights-out” line doesn’t mean zero humans—it means humans on exceptions. Practical scope:

Stable SKUs: validated molds with valve gates, balanced cooling, and robust EOAT.
Inline finishing: mark/weld/trim with vision confirmation and torque/force checks.
Autonomous logistics: AMR/AGV moves totes; MES schedules pallets; printers apply labels.
Remote dashboards: alarms for pressure envelopes, cycle drift, or energy spikes.
Preventive maintenance: vibration/temperature sensors; quick-swap spares and standard components.
See dark-run snapshots: Customer Examples

Case-Style Results (Representative)

KPI	Conventional Cell	Automated + Smart Cell
Cycle time (ABS housing)	28.5 s	21.8 s
Scrap rate	2.9%	≤ 0.9%
OEE	68%	88–92%
Energy (kWh/kg)	0.65	0.45
Direct labor / press	1.8 FTE	0.6–0.9 FTE

Actuals vary by tool, resin, and automation scope.
See comparable programs: Customer Examples

Design-for-Automation (DFA) Checkpoints

Grippable features: tabs/landings that EOAT can hold without marring.
Gate & vestige control: valve gates or fan/film away from EOAT contact; auto-degate where possible.
Cooling symmetry: ΔT ≤ 5 °C; consider conformal cooling for flatness and cycle.
Insert nests: chamfers, lead-ins, and poka-yoke geometry for robots.
Vision fiducials: consistent reference edges/marks; define pass/fail rules up front.
Bake these into your 48-hour DFM: Custom Mold & Design Maker • Tool execution: Mold Service

Automation Options & Payback Matrix

Option	What It Does	Typical Payback	Best For
EOAT take-out + stacker	Faster demold, no scuff	6–12 mo	Thin skins, A-class parts
Insert-load robot	Precise placement, fewer misses	9–18 mo	Metal-plastic hybrids
Vision SPC	100% cosmetic/dimensional checks	6–12 mo	Brand surfaces, tight CTQs
Sequential valve gating	Weld relocation, balance	12–24 mo	Long-flow, multi-cavity
Conformal cooling	−8–20% cycle, warp↓	9–18 mo	Hot-spot geometries
AMR/AGV	Low-touch logistics	12–24 mo	Multi-press cells
MES + energy	OEE↑, kWh/kg↓	6–12 mo	Any high-runner SKU

Run side-by-side ROI in your DFM pack: Custom Mold & Design Maker

Implementation Roadmap (Fast & Defensible)

Upload CAD & targets (volumes, CTQs, automation scope).
→ Custom Mold & Design Maker
48-Hour DFM & Cell Concept (gates/cooling/EOAT/vision/MES) + cycle & labor model.
Tool build (aluminum → hybrid → steel) with sensor ports and EOAT interfaces.
→ Mold Service
Scientific trials: cavity-pressure DOE; lock golden recipe; add vision rules.
→ Molding
Pilot automation: dry-run AMR/AGV, labels, packing; finalize pallet map & COA.
Scale & replicate: copy-cavity to steel; deploy the same guarded recipe & MES rules.
→ Examples & metrics: Customer Examples

RFQ Template (Copy/Paste)

Subject: RFQ – Injection Molding Automation & Smart Cell Integration
Attachments: STEP/IGES + 2D with CTQs & cosmetic map

Annual volume & first PO qty; SKU/color count
Tooling strategy (cavity count; valve vs. cold runner; conformal cooling candidates)
Automation scope (EOAT take-out, insert load, in-cell process: print/laser/weld/leak)
Vision SPC needs (cosmetics, dimensions, ΔE/gloss; sample rate vs. 100%)
Sensors (cavity pressure/TC), MES dashboards, energy (kWh/kg) reporting
Packaging/labels (trays/boxes, barcode/QR, genealogy requirements), pallet map
Validation (FAIR, CMM/scan, GR&R, CpK @ CTQs targets), PPAP/IQ-OQ-PQ if needed
Milestones (T0/T1/buy-off/SOP) & Incoterms

Need help shaping the RFQ?
→ Custom Mold & Design Maker • Quotes & timing: Mold Service • Engineering chat: Contact

FAQ

Do small runs justify robots?
Yes—modular EOAT and shared bases lower capex; you can redeploy robots across SKUs. See pilot-to-production paths in Molding.

How do we avoid “automation brittleness”?
Design EOAT for tolerance; add vision to verify states; keep manual bypass plans; standardize spares. Review our tooling standards in Injection Mold.

What about training and maintenance?
We include PM schedules, spare kits, and operator playbooks; see real outcomes in Customer Examples.

Why TaiwanMoldMaker.com

Integrated approach: tooling, robots, vision, and MES planned together.
Proven cells: valve-gated hot runners, conformal cooling, EOAT libraries, inline finishing.
Auditable quality: scientific molding (cavity pressure), FAIR/CMM/GR&R, CpK dashboards.
Dive deeper: Injection Mold • Molding • Customer Examples

Call to Action

Ready to pilot robotic injection molding and scale to smart manufacturing? Send CAD and targets to receive a 48-Hour DFM & Cell Concept Pack—EOAT/vision plan, cycle & labor model, and an implementation schedule.
→ Request an Instant Quote • Start with DFM here: Custom Mold & Design Maker
